In an Organization plan, relationships are used to link different object types.
Example − A person holding a position in an organization is assigned with cost center. It defines a Person to position relationship and position to Organization unit.
While defining a hierarchical organization structure, it means you are creating a relationship between organization objects. When a person is holding a position in an organization unit, it means there is relationship between position object and organization object.
A relationship can be created in both the ways- top down and bottom approach. These relationships are normally maintained in HRP001 table. If these relationships are not standard, you may need additional tables.
To maintain relationship, use T-Code: PP01 or PP03.
![T-Code: PP01 or PP03](https://www.tutorialspoint.com/sap_hr/images/t_code_pp01_pp03.jpg)
A new window will open with the name Maintain Object.
Select the Object type, enter position number, give relationship and click create (F5).
![Maintain Object](https://www.tutorialspoint.com/sap_hr/images/maintain_object.jpg)
Object Types and Essential Relationships
Go to SPRO → IMG → Personnel Management → Organizational Management → Basic Settings → Data model enhancement → Maintain Object Types → Execute
To create new object type and assigning relationships follow the steps given below.
Step 1 − Create new object type and assign essential relationships.
Step 2 − Assign object to the required Infotypes.
Step 3 − Maintain subtypes.
Step 4 − Maintain personnel actions.
Step 5 − Assign number range.
Step 6 − Maintain object via PP03 or PP01.
![Object Types and Essential Relationships](https://www.tutorialspoint.com/sap_hr/images/object_types_essential_relationships.jpg)

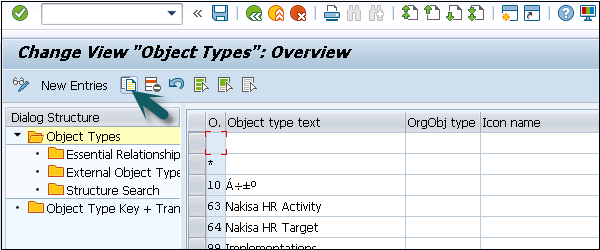

Step 7 − Go to the Change View “Object Types”: Overview window. Click New Entries to create a new object type. You can also copy an existing object type.
![Change View1](https://www.tutorialspoint.com/sap_hr/images/change_view1.jpg)
![Change View2](https://www.tutorialspoint.com/sap_hr/images/change_view2.jpg)
Step 8 − Enter Object type text, code, etc. When the object is created, assign essential relationships to it by clicking on essential relationships on the left side.
- Assigning a relationship means that once an object is created, the assigned relationships are mandatory to be maintained.
- Maintaining Object types is available in Table: T7780
- Maintaining Essential relationship is available in Table: T7750
![Table: T7750](https://www.tutorialspoint.com/sap_hr/images/table_t7750.jpg)
Relationship Maintenance
For maintaining relationship in SAP HR module, go to SPRO → IMG → Personnel Management → Organizational Management → Basic Settings → Data model enhancement → Relationship Maintenance → Maintain Relationships → Execute
![Relationship Maintenance](https://www.tutorialspoint.com/sap_hr/images/relationship_maintenance.jpg)

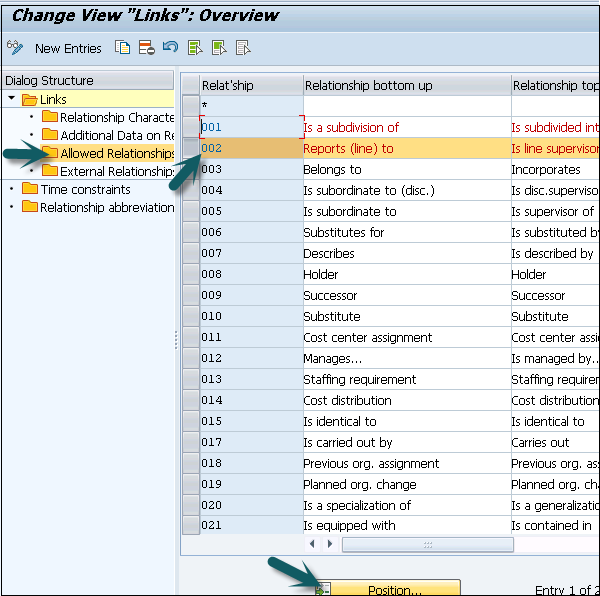

In the left pane, go to Allowed Relationships, select the relationship you want to maintain, click Position.
![Allowed Relationships](https://www.tutorialspoint.com/sap_hr/images/allowed_relationships.jpg)
